Play with volume for statefulsets

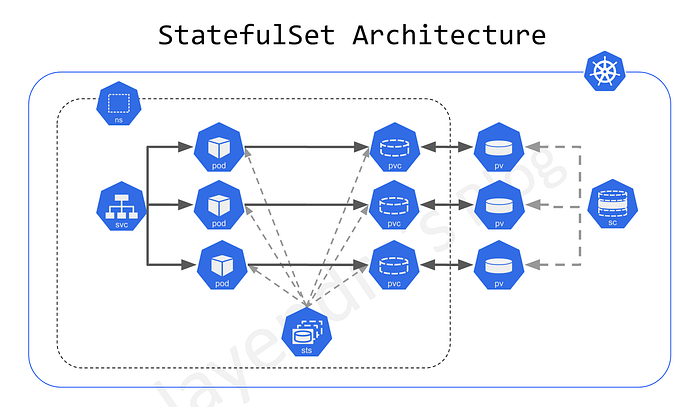

Statefulsets are specific resources in Kubernetes & support handling databases too. Unlike deployments (stateless), it requires special treatments. In case you would like to increase space on your deployment, you simply edit the value & it will create a new pod with that configuration. However, statefulsets can’t work that way. Let’s explore simple steps.

Case 1: Increase disk space

In the real world, we may assign a small value to our databases at the start & later want it to increase. Let’s check a scenario where you have installed cortex to your cluster & now want to increase disk for stability.

Step 1: change configuration YAML

We use our terraform + helm pipeline to deploy cortex. Below change would set configuration & does not show plan change after we increase disk space with subsequent commands

# cat cortex-values.yml
store_gateway:
  serviceMonitor:
    enabled: false
    additionalLabels:
      release: prom
  resources:
    limits:
      cpu: 500m
      memory: 1G
    requests:
      cpu: 500m
      memory: 1G
  persistentVolume:
    size: 50Gi
  nodeSelector:
    service: ${nodeselector}
  extraArgs:
    log.level: error

Step 2: Manually increase PVC

As we already deployed statefulset, running the above command would not do any change to the disk sizes. If we want to retain existing data, we must manually increase size. To edit all existing PVC with new disk size. Wait for the new disk size shown

# kubectl edit PVC storage-cortex-store-gateway-0 -n cortex
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  annotations:
    pv.kubernetes.io/bind-completed: "yes"
    pv.kubernetes.io/bound-by-controller: "yes"
    volume.beta.kubernetes.io/storage-provisioner: kubernetes.io/aws-ebs
    volume.kubernetes.io/selected-node: ip-10-30-xx-xx.eu-west-1.compute.internal
    volume.kubernetes.io/storage-resizer: kubernetes.io/aws-ebs
  creationTimestamp: "2022-02-14T06:49:58Z"
  finalizers:
    - kubernetes.io/pvc-protection
  labels:
    app.kubernetes.io/component: store-gateway
    app.kubernetes.io/instance: cortex
    app.kubernetes.io/name: cortex
  name: storage-cortex-store-gateway-0
  namespace: cortex
  resourceVersion: "155240334"
  uid: 70522d12-aa01-496f-8xx2-9c5e0e6a3a3f
spec:
  accessModes:
    - ReadWriteOnce
    resources:
      requests:
        storage: 50Gi
    storageClassName: gp2
    volumeMode: Filesystem
    volumeName: pvc-70522d12-aa01-496f-8xx2-9c5e0e6a3a3f

Step 3: Remove existing sts leaving PVC

Now our disk space has increased. But the sts created do not know the correct size. To avoid conflict, we will remove sts with the simple command below:

kubectl delete sts — cascade=orphan cortex-store-gateway -n cortex

Step 4: Deploy statefulsets

As we have removed statefulsets in the last command. terraform plan shows the deployment of the same resources & it will find disk available hence utilises new disk & new configuration done in step 1.

terraform apply

Case 2: Move PVC to another zone

We had an interesting case where we had set up cortex in multiple zones, later due to high network usage across zones, we decided to keep it in a single zone. Moving to a single zone worked well. however, we missed volumes in another zone. So we used the below steps to ensure PVC migrates to a new zone in the same region.

Problem statement

As mentioned we can see that after changing zone for my cortex configuration, my pod were unable to schedule.

kubectl get po -n cortex -o wide | grep store
cortex-store-gateway-0                   0/1     Pending   0          19h   <none>         <none>                                       <none>           <none>

The event logs show that we are not able to mount the volume due to zone bindings.

kubectl get events -n cortex
LAST SEEN   TYPE      REASON              OBJECT                                                 MESSAGE
2m52s       Warning   FailedScheduling    pod/cortex-compactor-1                                 0/17 nodes are available: 10 node(s) didn't match Pod's node affinity, 3 node(s) had volume node affinity conflict, 4 node(s) had taint {dedicated: platform}, that the pod didn't tolerate.

Step 1: Get Volume Details

We can find existing PV & PVC in the statefulset deployment.

export PVC="storage-cortex-store-gateway-0"
export OLD_PV=`kubectl get pvc -n cortex $PVC -o=jsonpath='{.spec.volumeName}'`
export OLD_VOL=`kubectl get pv $OLD_PV  -o=jsonpath='{.spec.awsElasticBlockStore.volumeID}' | cut -d'/' -f 4`
export OLD_ZONE=`kubectl get pv $OLD_PV  -o=jsonpath='{.spec.awsElasticBlockStore.volumeID}' | cut -d'/' -f 3`
export NEW_ZONE="eu-west-1a"
echo $OLD_PV
echo $OLD_VOL
echo $OLD_ZONE

Step 2: Create snapshot

We have to migrate volume manually to the new zone. So let’s create snapshot.

export VOL_SNAPSHOT=`aws ec2 create-snapshot --description "Migrating Kubernetes PV" --volume-id $OLD_VOL | jq '.SnapshotId'`

We can wait for some time or run snapshot status to see it’s completed

sleep(100)
or
aws ec2 describe-snapshots --snapshot-ids $VOL_SNAPSHOT

Step 3: Create volume from the snapshot

As we are creating all manually, we have to create volume manually from the snapshot.

export NEW_VOL=`aws ec2 create-volume     --snapshot-id $VOL_SNAPSHOT --availability-zone $NEW_ZONE | jq '.VolumeId'`

Step 4: Create new configuration files

We need to modify a few fields zone & create Kubernetes YAML files. The command looks lengthy. However, it only removes cluttered information not required for future commands.

kubectl get pv $OLD_PV -n cortex -o=json | jq 'del(.metadata.resourceVersion,.metadata.uid,.metadata.selfLink,.metadata.creationTimestamp,.metadata.annotations,.metadata.generation,.metadata.ownerReferences)' | yq eval - -P > original-pv.yaml
kubectl get pvc $PVC -n cortex   -o=json | jq 'del(.metadata.resourceVersion,.metadata.uid,.metadata.selfLink,.metadata.creationTimestamp,.metadata.annotations,.metadata.generation,.metadata.ownerReferences)' | yq eval - -P > original-pvc.yaml
cat original-pv.yaml | sed -e 's/$OLD_VOL/$NEW_VOL/g' | sed -e 's/$OLD_ZONE/$NEW_ZONE/g' > pv.yaml

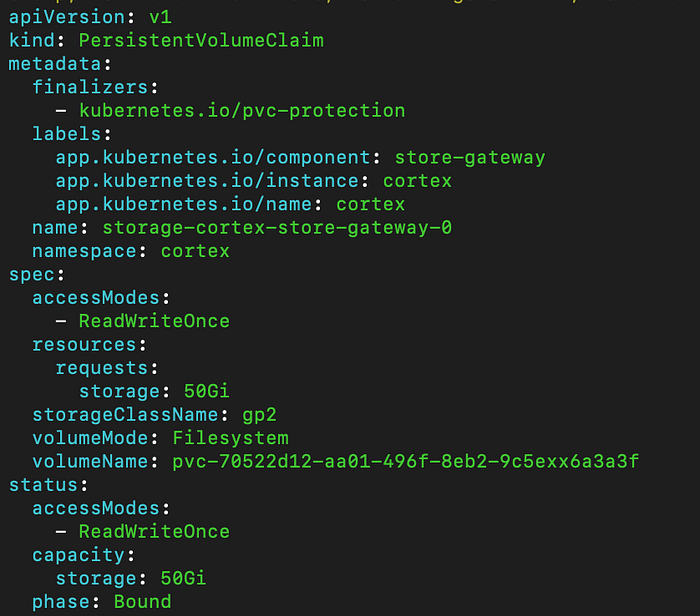

original-pvc.yaml

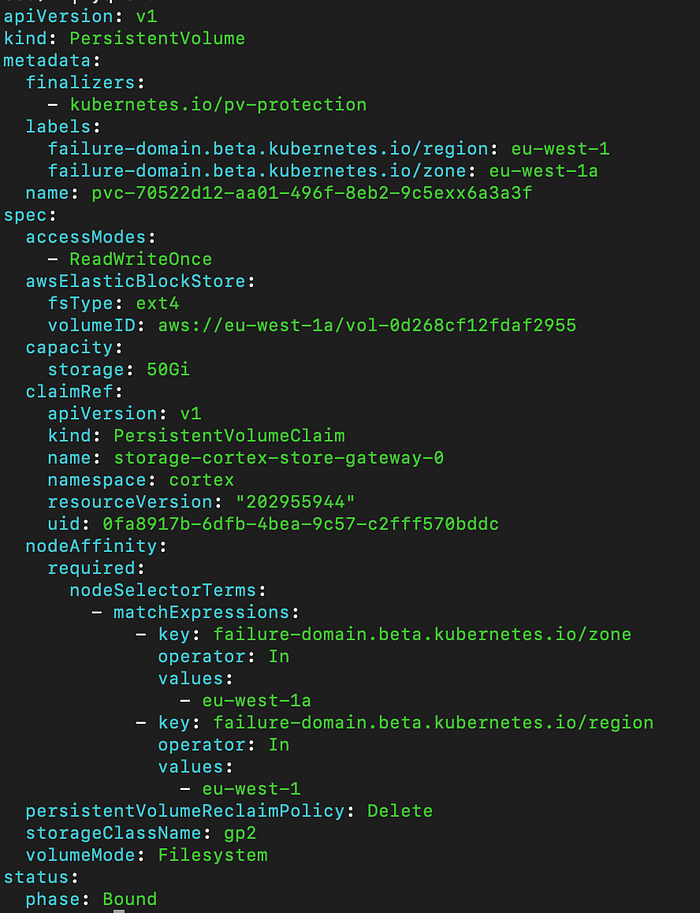

pv.yaml

Step 5: Remove old PVC & apply configuration

Our all manual work has been done. Now is the time we actually remove resources & recreate PV & PVC manually.

kubectl delete pvc -n cortex $PVC
kubectl apply -f pv.yaml
kubectl apply -f original-pvc.yaml

Fun facts

Kubernetes world has given the impression that everything can be handled with simple YAML change. Example like this shows there are yet manual interventions needed :) I am sure future versions may overcome such cases too.
